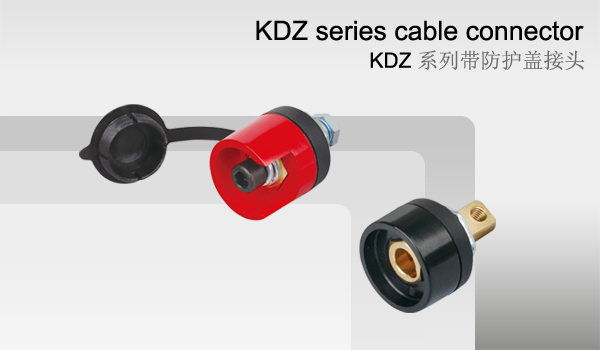

| KDZ series welding cable coupling device-cable connector,our factory manufactures and assembles all kinds of cable coupling devices(cable connector,cable joint)at home and abroad.The device is applied in the connection between the output end of the welding machine and the cable,also between the cable and cable.It’s easy,fast and safe. |
| Type |
Rated current |
Cable Sc |
| KDZ50 |
500A |
25-50mm2 |
| KDZ95 |
500A |
70-95mm2 |
| KDZ120 |
630A |
120mm2 | |
 |

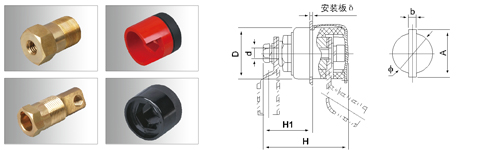

| Instailation(mm) |
| d |
D |
H |
H1 |
δ |
b |
A |
φ |
| M10 |
43 |
75 |
40 |
1-4 |
6.5 |
38 |
33 |
| M10 |
45 |
76 |
41 |
1-4 |
7 |
39.5 |
35 |
| M10 |
45 |
76 |
41 |
1-4 |
7 |
46 |
40 | | |
|
|
|
|
